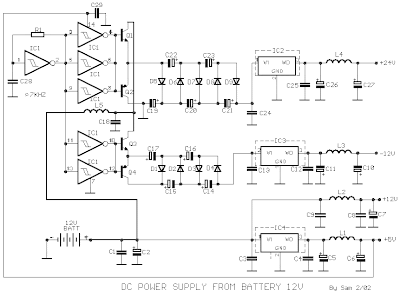

Part List
R1=6.8Kohms C19-20-21-22-23=220uF 25V IC2=7912
C1-4-8-12-18=100nF 100V C13-24-25-29=100nF 100V IC3=7805
C2=220uF 25V C28=3.3nF 63V D1....9=1N4001
C3-9-=680nF 63V Q1-3=TIP31 BATT=BATTERY 12V >3Ah
C5-11-26=4.7uF 16V Q2-4=TIP32 L1-2=VK200
C6-7-10-27=47uF 25V IC1=74HC14 L3-4=560μH
C14-15-16-17=220uF 25V IC2=7824 L5=22μH
